JYQ series mud -gas separator

Time：2019-05-07

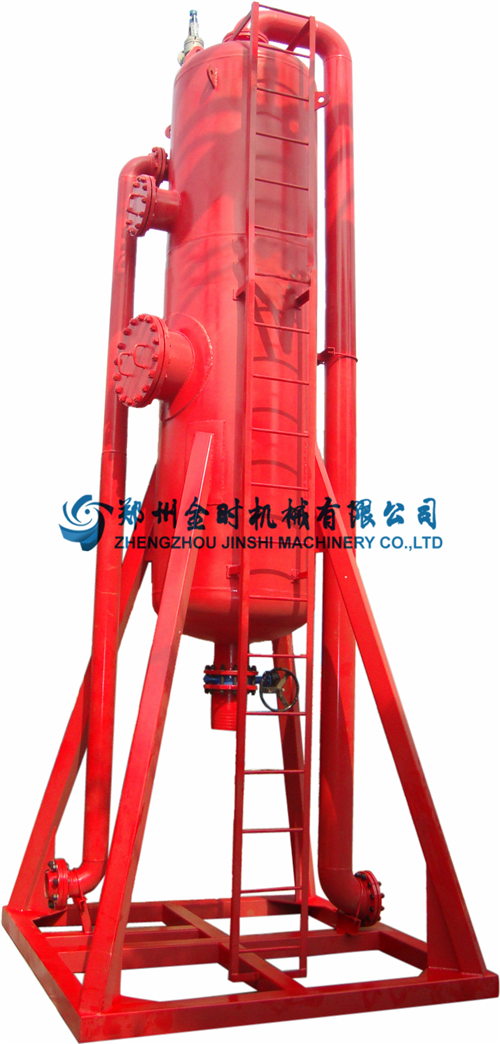

復件 DSC02031_副本.png

復件 DSC02038_副本.png

I. Applicability

JYQ series Mud-gas Separator is the specialized equipment for primary degasification of gas cut drilling fluid. It is mainly used to remove big bubbles, φ3~25mm in diameter, from gas-cut drilling fluid. The big bubbles of dilatant gas in drilling fluid fill most of the borehole annulus at some segments. They can cause well kick or even blowout to the rotary table if were not erased in time.

II. Technical parameters

1.0 MPa

型號 Model	JYQ-800-1	JYQ-1000-1	JYQ-1200-1
筒體直徑，mm Diameter of the shell	800	1000	1200
處理量，m³/h Discharge capacity	260	300	320
進液管直徑，mm Feeding pipe	150	150	150
排液管直徑，mm Mud discharge pipe	250	250	250
排氣管直徑，mm Gas discharge pipe	200	200	200
工作壓力，MPa Working pressure	1	1	1
質量，kg Weight	2100	2800	3200
外形尺寸，mm Overall dimensions	1600×1600×5762	2000×2000×6500	2200×2200×6500

1.6MPa

型號 Model	JYQ1000-1.6	JYQ1200-1.6
筒體直徑，mm Diameter of the shell	1000	1200
處理量，m³/h Discharge capacity	300	320
進液管直徑，mm Feeding pipe	6″	6″
排液管直徑，mm Mud discharge pipe	10″	10″
排氣管直徑，mm Gas discharge pipe	8″	8″
工作壓力，MPa Working pressure	1.6	1.6
質量，kg Weight	8000	9000
外形尺寸，mm Overall dimensions	2200×2200×6500	2200×2200×6500

4MPa

型號 Model	JYQ-1000-4	JYQ-1200-4
筒體直徑，mm Diameter of the shell	1000	1200
處理量，m³/h Discharge capacity	300	320
進液管直徑，mm Feeding pipe	150	150
排液管直徑，mm Mud discharge pipe	250	250
排氣管直徑，mm Gas discharge pipe	200	200
工作壓力，MPa Working pressure	4	4
質量，kg Weight	8000	9500
外形尺寸，mm Overall dimensions	2300×2300×6500	2300×2300×6500
